Ground Handling TIRROLLER
This heavy-load transport roller features urethane rollers that minimize vibrations and reduce floor damage. Compact and lightweight, it offers excellent durability and safety while enhancing work efficiency.
Features
- Urethane rollers reduce floor scratches and provide superior shock absorption, allowing safe use on concrete floors.
- Durable frame and easy-to-maintain design ensure high safety.
- Compact and lightweight, improving work efficiency.
- A turntable is installed on the top of the frame for easy directional changes.
- Bogie system allows smooth movement even on rough or uneven roads (Type WB, WBS, CWB).
- Available in self-propelled versions powered by electric or hydraulic drive.
Applications
- For moving and carrying equipment and machinary in factories and other facilities
- For moving and carrying large machinary within large facilities
- For building renovation and constructions
Lineup *Specifications are subject to change without notice.
-

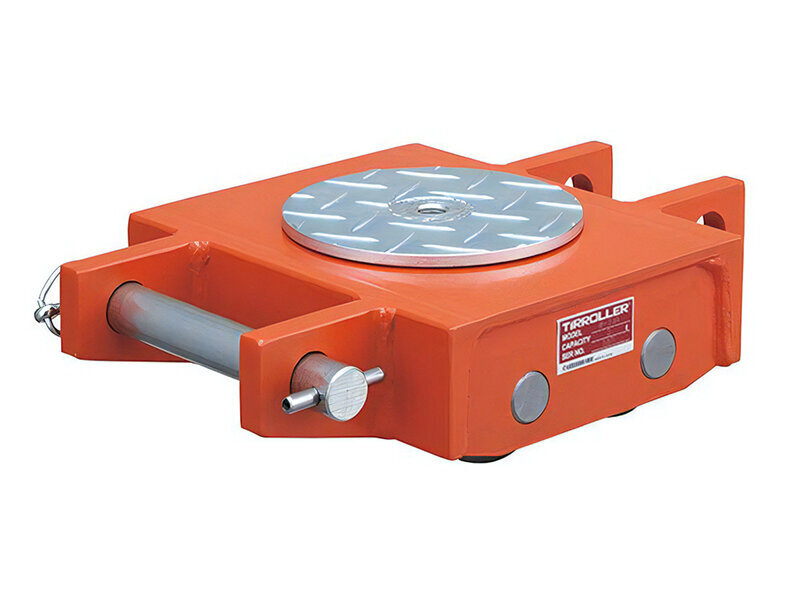

Type W Mazimum Capacity :2t～8t
Standard type. Suitable for steel plate and concrete road surfaces.
-

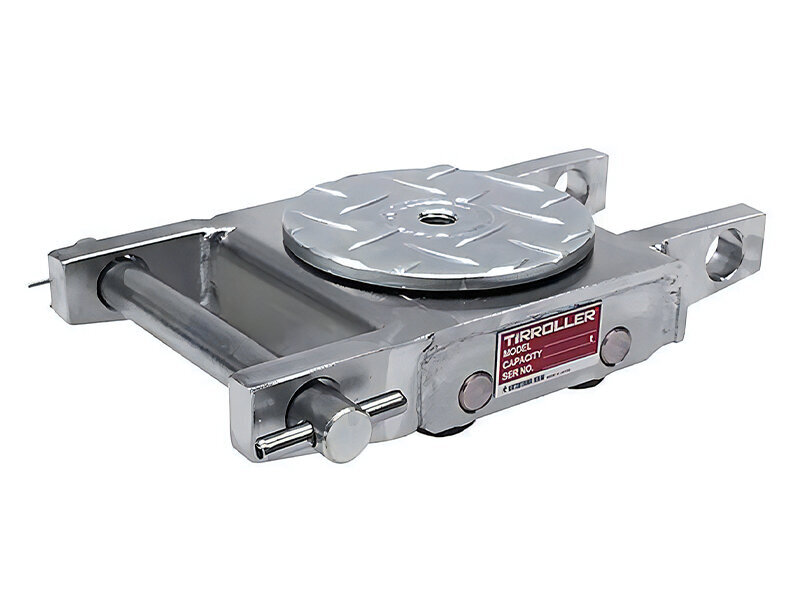

Type WSP Maximum Capacity：2t～10t
Low, lightweight, 4-wheel, alloy-plated type.
Ultra-low-profile alloy-plated specification for use in clean environments. -

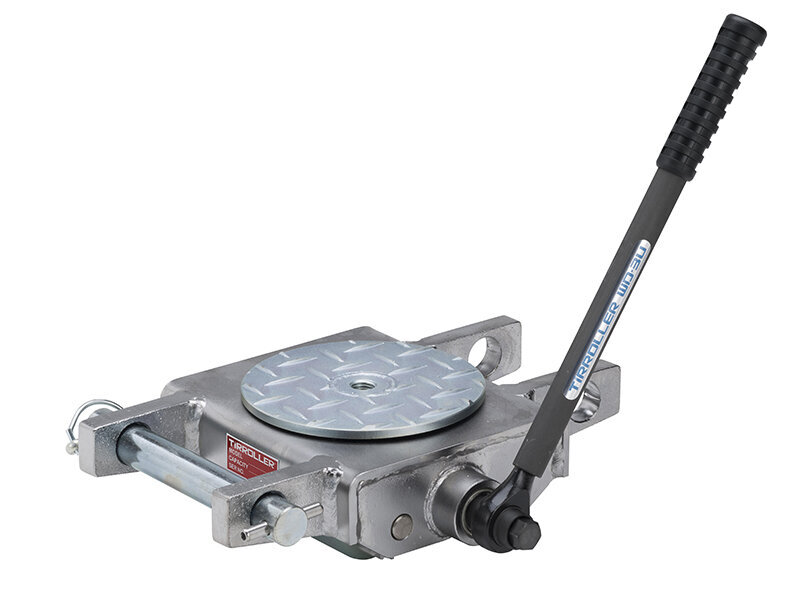

Type WDP Maximum Capacity:2t～10t
Low-height alloy plating specification. Suitable for use in clean environments.
-

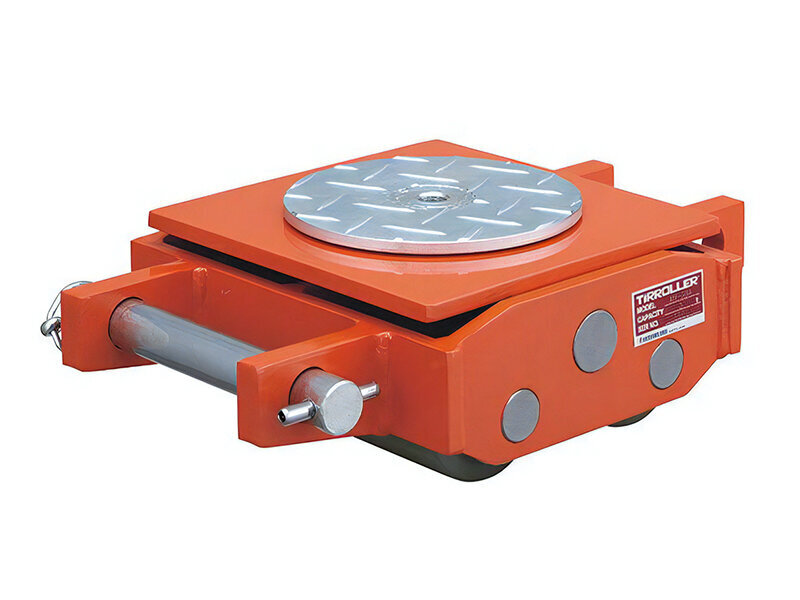

Type WB Maximum Capacity：2t～8t
Features a bogie mechanism for smooth, stable transport even on uneven surfaces.
The top plate can tilt up to 4° for bogie operation. Capable of traveling on concrete surfaces. -

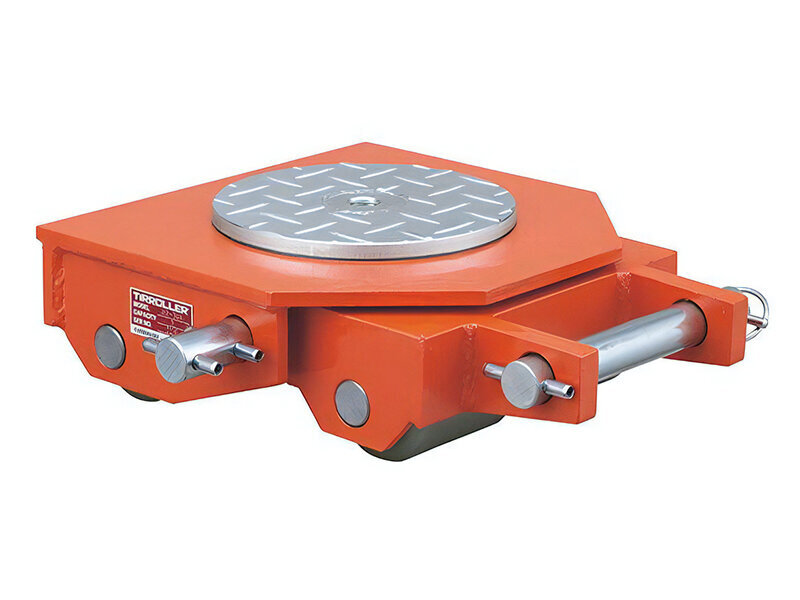

Type WR Maximum Capacity:2t～8t
The front wheels feature a 45-degree turning function on both sides, enabling smooth directional changes.<br>
By setting the locking pin, it can be switched to straight-line mode only.
Option *Specifications are subject to change without notice.
-
Roller for TIRROLLER Handle ■ Compatible Model：TIRROLLER Handle PHP-25, PHP-30
-
TIRROLLER handle ■Plated finish
■PHP-20: Overall length 1070 mm, Net weight 3.2kg, Handle-pin diameter φ20 mm
■PHP-25: Overall length 1070 mm, Net weight 5.3kg, Handle-pin diameter φ25 mm
■PHP-30: Overall length 1270 mm, Net weight 6.4kg, Handle-pin diameter φ30 mm -

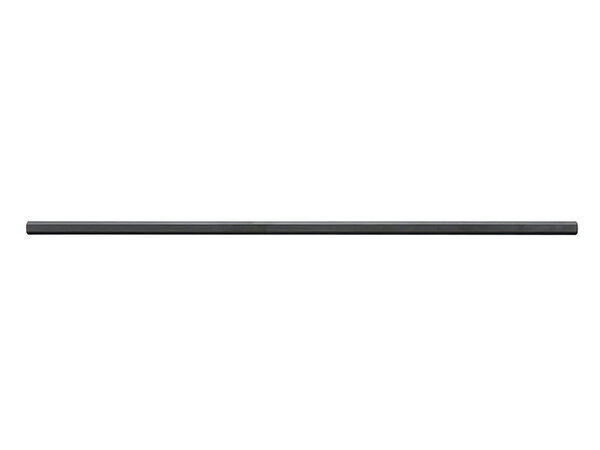

Drive Shafts (Long Shafts / Hex Bars) ■ Compatoble Model：TIRROLLER WDP-2U, WDP-3U, WDP-5U, WDP-8U, WDP-10U
■WDP-2U: 13(opposite side) x 270(L)mm
■WDP-3U: 17(opposite side) x 810(L)mm
■WDP-5U: 22(opposite side) x 990(L)mm
■WDP-8U: 27(opposite side) x 1180(L)mm
■WDP-10U: 32(opposite side) x 1340(L)mm -

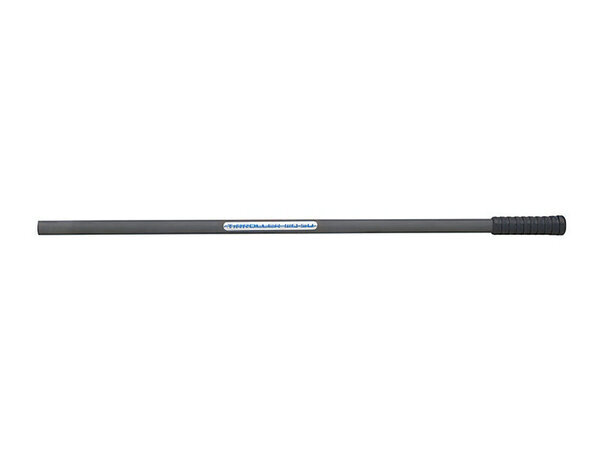

Operating Handle (Long/Manual Drive) ■ Compatible Model：TIRROLLER WDP-5U, WDP-8U, WDP-10U用 (not compatible with WDP-2U or WDP-3U.)
■WDP-5U : 800mm
■WDP-8U : 1000mm
■WDP-10U : 1200mm
CAUTIONS
- For use on concrete pavement or copper plate surfaces
- Road surface unevenness should be 2mm or less. For unevenness exceeding 2mm, or in cases of bumps or slopes, use the Type WB.
- Type WB is suitable for road surface unevenness of 6mm or less and road surface inclines of 4° or less. Jacking up is required when changing direction while using the TIRROLLER.
- Type WR can rotate 45 degrees to left and right.
