Ground Handling Powered TIRROLLER

Electric roller with a detachable drive unit. Equipped with urethane rollers that minimize vibration and protect floor surfaces, it is designed for transporting heavy loads.
Despite its compact and lightweight design, it offers excellent durability and safety, improving operational efficiency.

Features

The 5-ton type can be operated with a single-phase 100V power supply〈CWDP-5UESV(L・R)〉
Heavy objects can be transported without using a towing device.
The slow start system enables safe and stable driving.
Speed control to suit the application.
Easy operation with pendant switch
Equipped with brakes
Can be separated into the main unit, drive unit, and control panel for easy portability.
By removing the electric drive unit and replacing it with the operating handle, manual transport becomes possible.
The main body features an alloy plating finish (the motor features a painted finish).

Applications

For moving and carrying equipment and machinary in factories and other facilities
For moving and carrying large machinary within large facilities
For transporting equipment in hospitals and medical institutions
For building renovation and constructions
Clean environments for electronic and precision components

Lineup *Specifications are subject to change without notice.

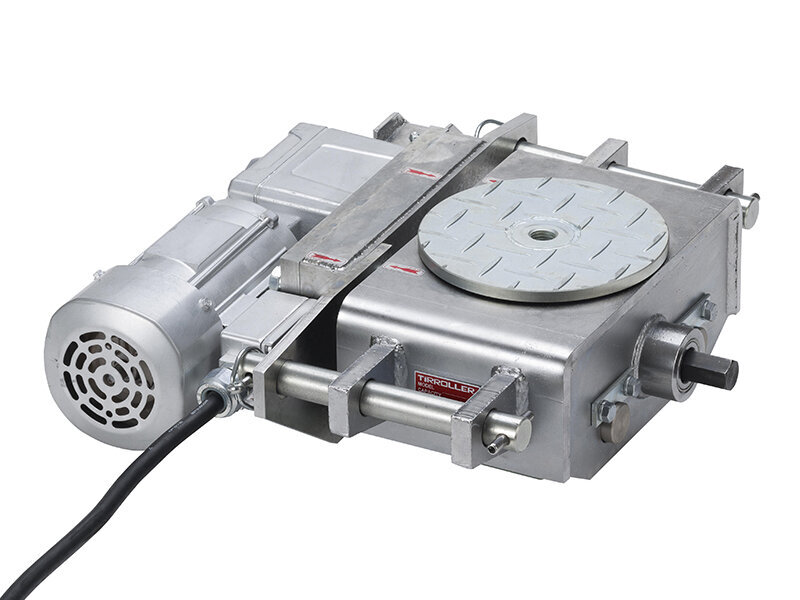

Type CWDP

Maximum Capacity：5t～10t

Quiet and clean design.<br>

Easy to carry with detachable electric drive unit.

Option *Specifications are subject to change without notice.

Roller for TIRROLLER Handle

■ Compatible Model：TIRROLLER Handle PHP-25, PHP-30

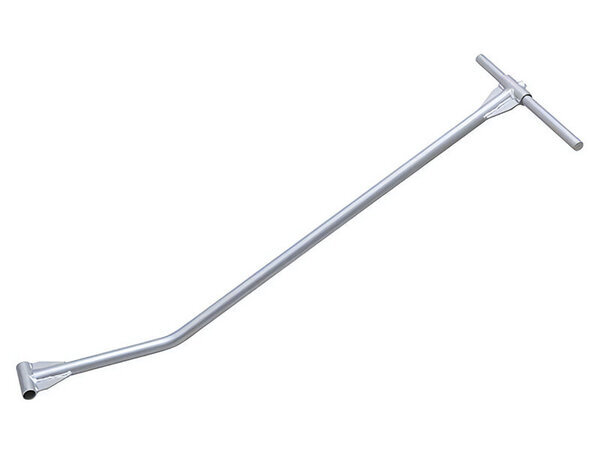

TIRROLLER handle

■Plated finish
■PHP-20: Overall length 1070 mm, Net weight 3.2kg, Handle-pin diameter φ20 mm
■PHP-25: Overall length 1070 mm, Net weight 5.3kg, Handle-pin diameter φ25 mm
■PHP-30: Overall length 1270 mm, Net weight 6.4kg, Handle-pin diameter φ30 mm

CAUTIONS

For use on concrete pavement or copper plate surfaces
Road surface unevenness must be 2mm or less
The control panel is located separately.
When changing direction, remove the drive unit and attach it to the front wheel aligned with the new direction of travel.
