Lifting TIRFOR TU-16

This manual endless winch can pull freely in any direction—vertical, horizontal, or diagonal—and has no limitation on wire rope length. With a simple lever operation, the rope can be easily set, making it user-friendly for anyone. A widely used model with over one million units sold, trusted for its reliability and proven performance. It is ideal for a wide range of applications, including construction sites, factories, and emergency operations during disasters.

Features

Compact, lightweight, and long-lasting design
Built-in release lever for easy wire rope setup
Safety pin to prevent overload
Stroke can be finely adjusted in millimeter units
Weight: 18kg
Maximum capacity: 1600kg

Applications

Roof lifting and sliding method, erection work
Timber harvesting
Heavy-duty material handling
Machinery installation work
Pipe lifting
Rescue operations
Shipbuilding
Railway-related restoration work
Stonework in landscaping
Tensioning of transmission lines
Setting up large tents, pulling in ski lift wire ropes

Option *Specifications are subject to change without notice.

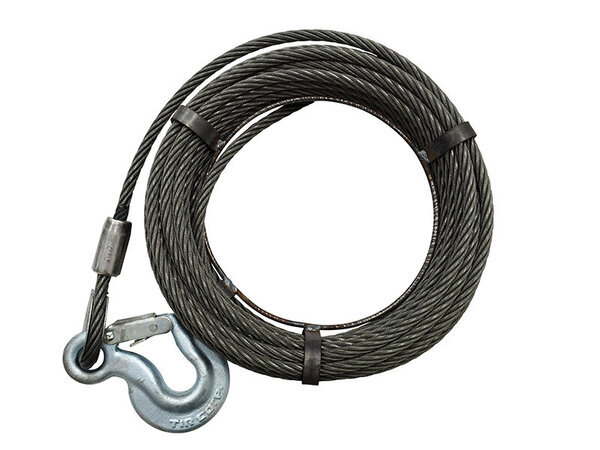

TIRFOR TU-16 Wire rope

■Compatible Model : TIRFOR TU-16

■Wire rope diameter：φ11.7mm（max.）
■Breaking load：94.1kN
■Surface：No plating
■Unit weight：0.55kg/m

*Wire rope is sold separately.

*Wire rope is available in 10-meter increments.

CAUTIONS

For safety, use the designated wire rope.
Internal parts not available for supply.
