Lifting TIRFOR T-7
This manual endless winch can pull freely in any direction—vertical, horizontal, or diagonal—and has no limitation on wire rope length. With a simple lever operation, the wire rope can be easily set, improving work efficiency.
Features
- Compact, lightweight, and long-lasting design
- Built-in release lever for easy wire rope setup
- Safety pin to prevent overload
- Stroke can be finely adjusted in millimeter units
- Weight: 7 kg
- Maximum capacity: 750 kg
Applications
- Roof lifting and sliding method, erection work
- Timber harvesting
- Heavy-duty material handling
- Machinery installation work
- Pipe lifting
- Rescue operations
- Shipbuilding
- Railway-related restoration work
- Stonework in landscaping
- Tensioning of transmission lines
- Setting up large tents, pulling in ski lift wire ropes
Option *Specifications are subject to change without notice.
-

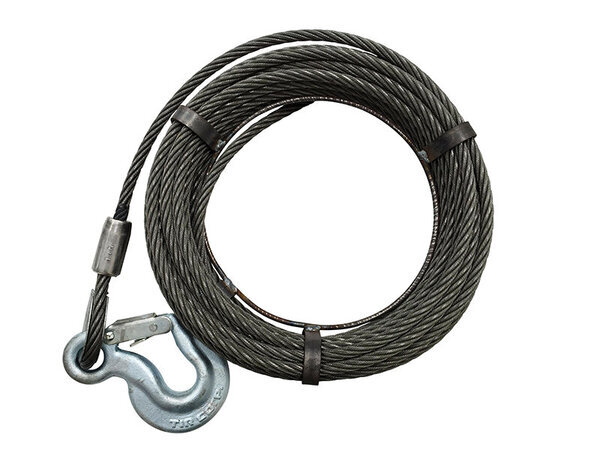

TIRFOR T-7 Wire rope ■Wire rope diameter: φ8.3mm (max.)
■Breaking load：44.1kN
■Surface：No plating
■Unit weight：0.3kg/m*Wire rope is sold separately.
*Wire rope is available in 10-meter increments.
CAUTIONS
- For safety, use the designated wire rope.
- Internal parts not available for supply.
