PRODUCTS
Ground Handling GS Caster
This caster features two types of bearings for superior swivel performance. Compared to conventional casters, swivel resistance is significantly reduced. It is ideal for transporting heavy loads. Using a versatile swivel base helps reduce running costs.
Features
- 2 types of bearings
- A wide range of sizes can be accommodated using a common swivel base.
- Pedal brakes (Type TBS)
- Optional swivel/fixed locking device (with switching mechanism). Can be used with low-floor twin wheels and spring-loaded casters.
- Maximum load: 175 to 1250 kg
Applications
- For heavy-duty
- For trolley driven wheel (Type TBH)
- For precision machine transport cart (Spring Type)
- For in-house transport vehicle
Lineup *Specifications are subject to change without notice.
-

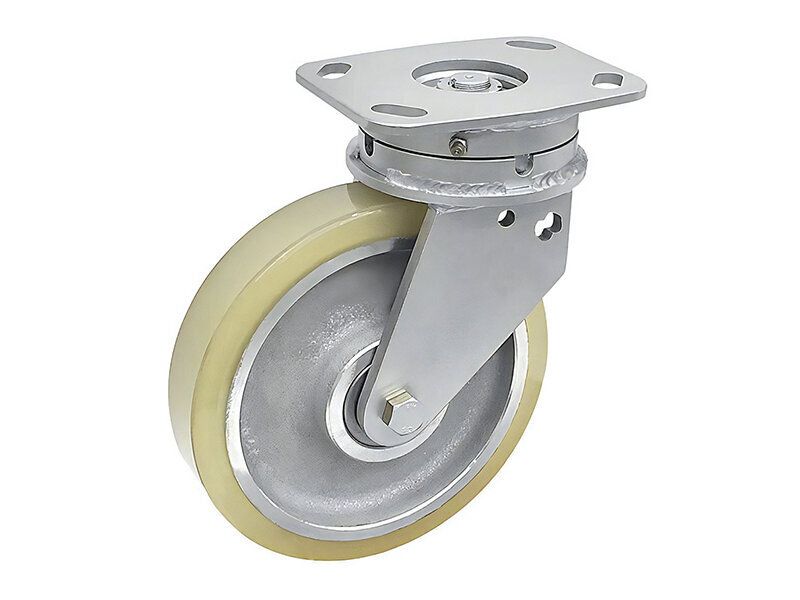

Type TB Swivel wheel
*The picture features urethane wheels.
-

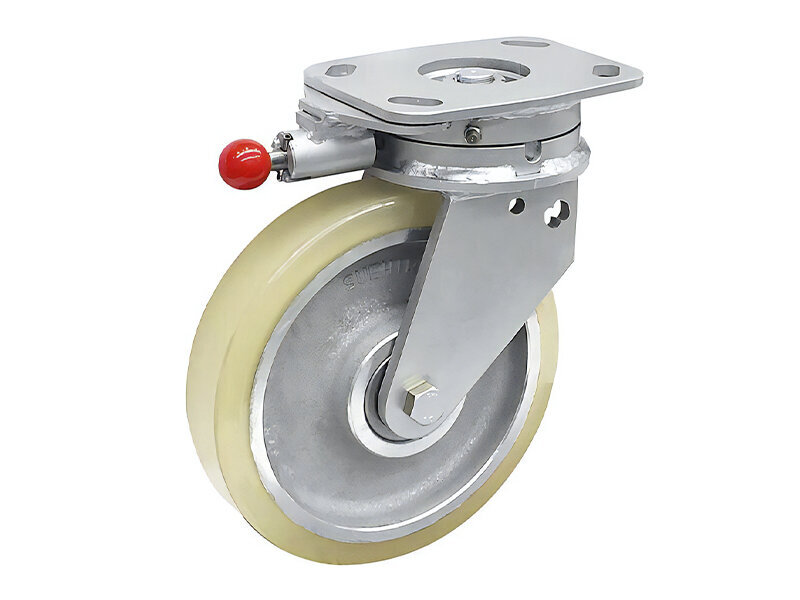

Type TB with switching device Swivel・fixed wheel
*The picture features urethane wheels.
-

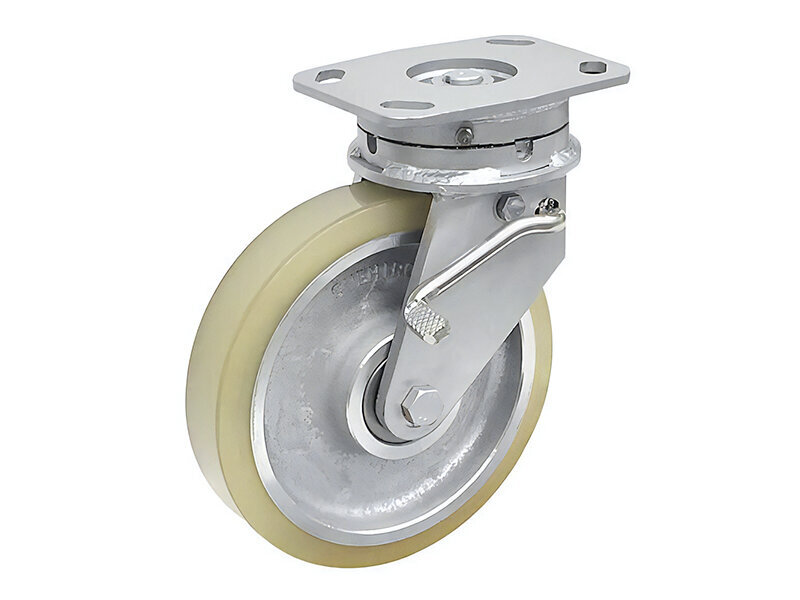

Type TBS Swivel wheel with stopper
*The picture features urethane wheels.
-
Type TF Fixed wheel
*The picture features iron wheels.
-

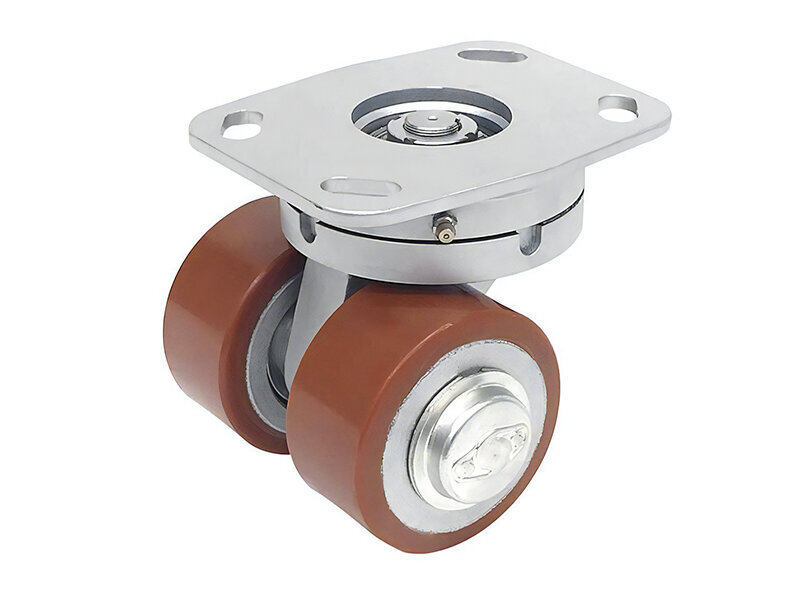

Type TBH Low-heigh, GS twin-caster with swivel wheel
*The picture features urethane wheels.
-
Type THR Low-height, twin-caster with fixed wheel
*The picture features urethane wheels.
-

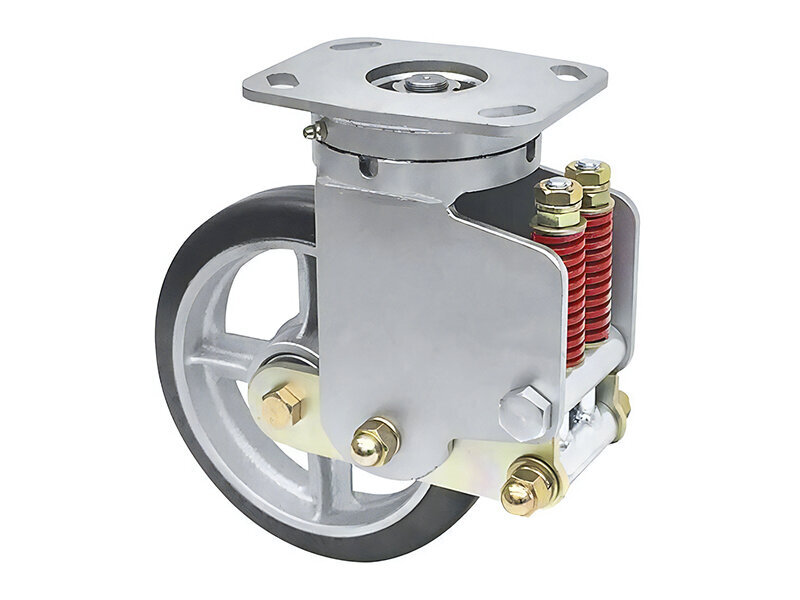

Type TB-SP GS spring caster with swivel wheel
*The picture features highly-elastic rubber wheels.
-

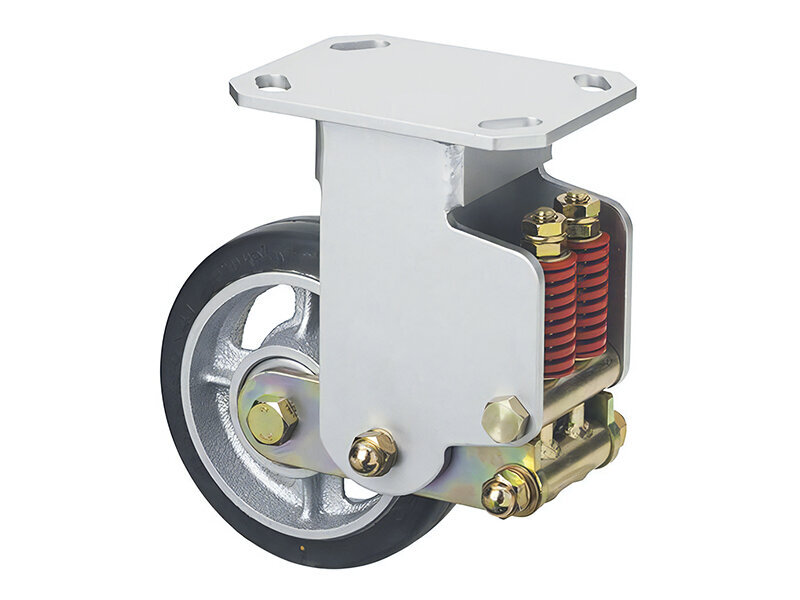

Type TF-SP GS spring caster with fixed wheel
*The picture features highly-elastic rubber wheels.
Option *Specifications are subject to change without notice.
-

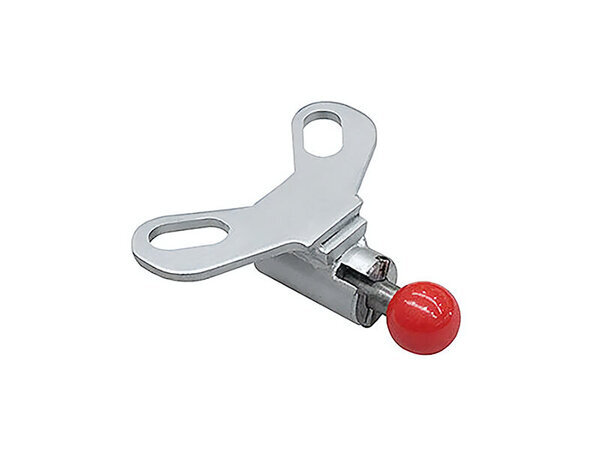

Switching device for GS caster ■ Compatible Model：GS caster Type TB, TBS, TBH, TB-SP
CAUTIONS
- The load capacity varies depending on the selected wheels.
- Not suitable for AGV
