Safety & Efficiency Dynafor

High-precision real-time detection of electrical resistance changes corresponding to strain using strain gauges. Ensures safe load management and verification during operations such as towing and lifting.

Features

Compact, lightweight, and high precision
Equipped with a 2.4GHz wireless chipset, enabling remote display on an LCD monitor (Dynafor HHD) with a communication range of 400m.
Compatible with dedicated shackles and dedicated swivel hooks (optional)
Equipped with a Bluetooth chipset, connectable via a free app on mobile devices (Range: 30m)
Powered by three AA batteries (1.5V)

Applications

Safety management of wire rope tension
Safety management of wire tension
Safety management of cranes and other equipment
Winch towing status verification
Safety management of inspection equipment
Safety management during ugboat towing operations
Safety management of scrap steel lifting equipment
Safety management of belt conveyor tension
Safety management of tension in construction guide ropes
Safety management during material hoisting and movement
Verification of overload due to packaging materials

Lineup *Specifications are subject to change without notice.

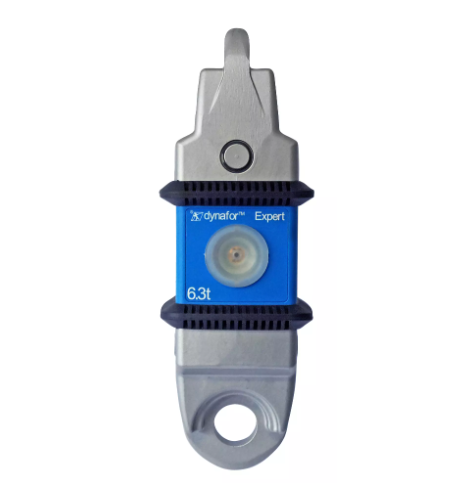

Dynafor Expert

■Maximum Capacity : 0.5t ～ 10t
■IP64

Enables safe load management with high precision of ±0.1% of full scale

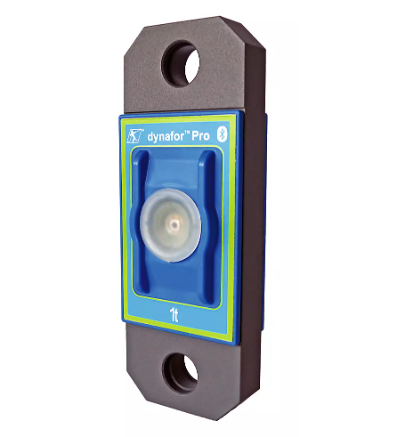

Dynafor Pro

■Maximum Capacity：1t～250t

■IP65

Enables safe load management with high precision of ±0.2% of full scale

Option *Specifications are subject to change without notice.

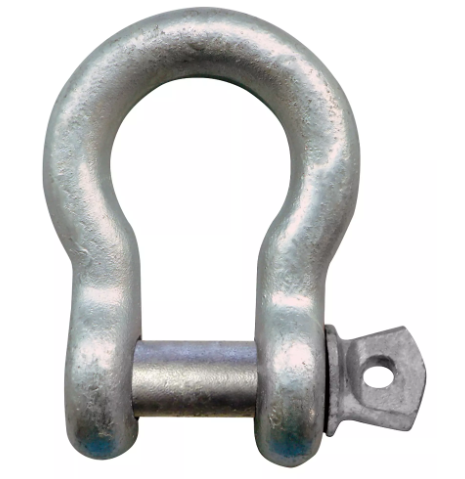

Shackle for Dynafor

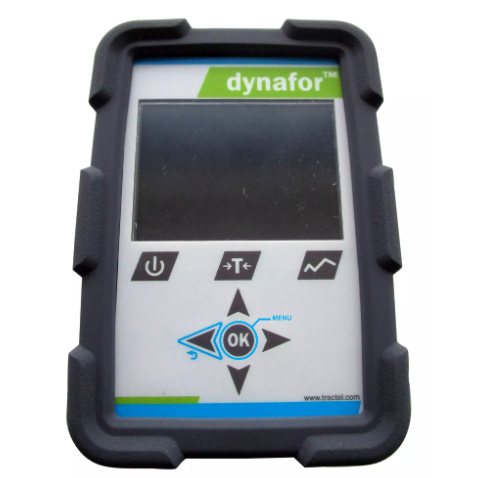

Dynafor HHD remote display

CAUTIONS

We recommend the use of the designated shackle during operation.
Dynafor Pro has an IP64 protection rating, while the Dynafor Expert is rated IP65. In general, the units are protected against water splashes from any direction; however, they should not be used in environments where they may be exposed to direct water jets. In addition, they must not be used in waves or underwater.
The remote display (HHD) has an IP65 protection rating. It is generally unaffected by water jets from any direction; however, do not use it in environments where it will be exposed to water jets for extended periods. It is also not suitable for use in waves or underwater.
Avoid using in locations with frequent temperature changes, corrosive gases, or severe vibration.
